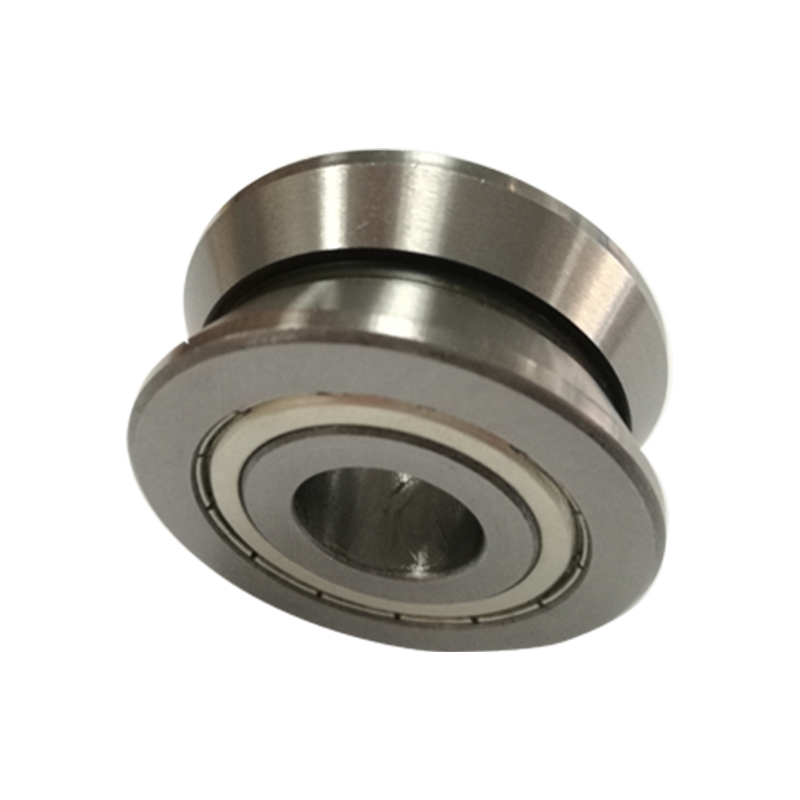

LV series guide roller bearings are a kind of bearing specially used in linear guide systems and are commonly used in industrial automation equipment and precision machinery. They have a V-shaped outer contour that precisely matches the V-shaped guide rail, thus providing a stable rolling effect. This design not only increases the contact area between the guide rail and the roller, but also enhances the load capacity and wear resistance of the bearing, making it suitable for high speed and heavy load conditions. LV series bearings are widely used in textile machinery, robotic equipment, packaging machinery and other fields, especially in situations where high-precision positioning and low friction are required.
Product parameters

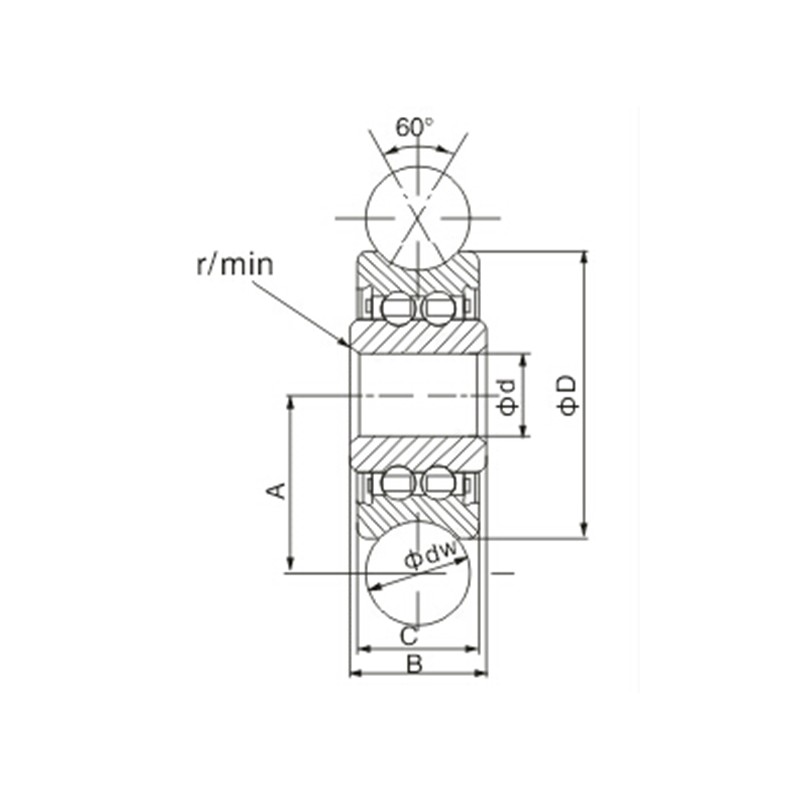

| Wheel Type | Weight | Dimensions (mm) | Load(KN) | |||||||||
| (Kg) | dw | d | D | b | C | A | α | rs | Cw | Cow | ||
| LV 20/7 ZZ | 17 | 10 | 7 | 22 | 11 | 11 | 14.5 | 120 | 0.3 | 3.78 | 2.05 | |
| LV 20/8 ZZ | 49 | 10 | 8 | 30 | 14 | 14 | 18.1 | 120 | 0.3 | 5.13 | 2.67 | |
| LV 202-38 ZZ | 87 | 10 | 15 | 38 | 17 | 17 | 22.3 | 120 | 0.5 | 8.47 | 5.37 | |
| LV 202-40 ZZ | 110 | 10 | 15 | 40 | 18 | 18 | 22 | 120 | 0.5 | 8.47 | 5.37 | |
| LV 201 ZZ | 130 | 20 | 12 | 41 | 20 | 20 | 28 | 120 | 0.3 | 8.47 | 5.37 | |
| LV 201-14.2RS | 107 | 14 | 12 | 39.9 | 20.1 | 18 | 24 | 100 | 0.5 | 8.9 | 5 | |
| LV 202-41 ZZ | 116 | 20 | 15 | 41 | 20 | 20 | 28 | 120 | 0.5 | 8.47 | 5.37 | |
| LV 203 ZZ | 325 | 20 | 17 | 58 | 25 | 25 | 35 | 120 | 0.5 | 14.66 | 9.1 | |
| LV 204-57 ZZ | 290 | 30 | 20 | 57 | 22 | 22 | 41 | 120 | 0.6 | 14.66 | 9.1 | |
