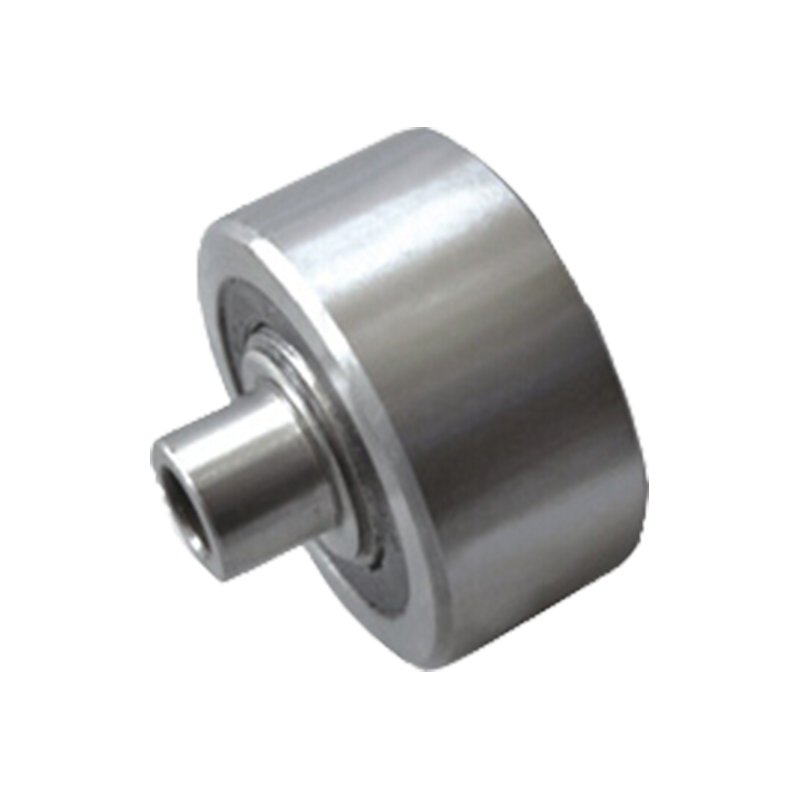

FR series orbital roller bearings are high-performance mechanical components that are widely used in various industrial equipment, especially conveying systems and automation equipment. This kind of bearing is designed to bear large radial load and axial load, and has good wear resistance and corrosion resistance. FR series bearings are usually made of high-quality materials to ensure long-term stable operation in harsh working environments. Its unique roller design provides a larger contact area, which reduces friction and heat generation and improves work efficiency. In addition, the FR series also has lower noise and vibration levels, making it suitable for applications that require higher operating accuracy. These bearings perform well in fields such as agricultural machinery, construction machinery, and heavy transportation equipment, becoming an important part of modern industry.

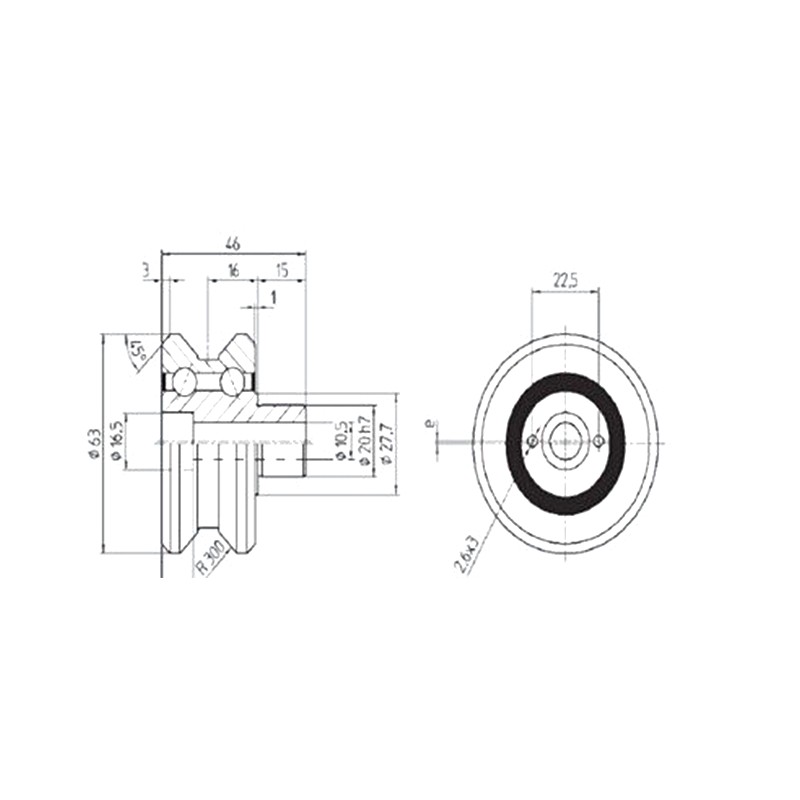

Product parameters
| Type | Wheel Type | Dimensions (mm) | Load(KN) | ||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| A | B | C | D | e | F | G | H | L | D1 | D2 | D3 | D4 | D5 | d | d1 | DP | R | Cw | Cow | ||
| V | FR10 | 22.62 | 10.5 | 10 | 1 | 1 | 2 | 7 | 15.4 | 30 | 6.4 | 15 | 20.8 | 11 | 42 | 9 | 2.6 | 3 | 200 | 4.9 | 5.3 |
| - | FR10Z | 22.62 | 10.5 | 10 | 1 | 0 | 2 | 7 | 15.4 | 30 | 6.4 | 15 | 20.8 | 11 | 42 | 9 | 2.6 | 3 | 200 | 4.9 | 5.3 |
| Rail | FR15 | 29.65 | 12 | 12 | 1 | 1 | 2 | 9 | 18.5 | 35 | 8.4 | 15 | 23.8 | 14 | 53 | 14 | 2.6 | 3 | 250 | 7.2 | 6.8 |
| - | FR15Z | 29.65 | 12 | 12 | 1 | 0 | 2 | 9 | 18.5 | 35 | 8.4 | 15 | 23.8 | 14 | 53 | 14 | 2.6 | 3 | 250 | 7.2 | 6.8 |
| - | FR20 | 36.2 | 16 | 15 | 1 | 1 | 3 | 11 | 22.5 | 46 | 10.5 | 20 | 22.7 | 18 | 63 | 20 | 2.6 | 3 | 300 | 10.2 | 9.5 |
| - | FR20Z | 36.2 | 16 | 15 | 1 | 0 | 3 | 11 | 22.5 | 46 | 10.5 | 20 | 22.7 | 18 | 63 | 20 | 2.6 | 3 | 300 | 10.2 | 9.5 |
| Guide | FR22 | 39.4 | 16 | 15 | 1 | 2 | 3 | 11 | 27.5 | 46 | 10.5 | 20 | 33 | 18 | 70 | 20 | 2.6 | 3 | 300 | 24.6 | 16.2 |
| - | FR22Z | 39.4 | 16 | 15 | 1 | 0 | 3 | 11 | 27.5 | 46 | 10.5 | 20 | 33 | 18 | 70 | 20 | 2.6 | 3 | 300 | 24.6 | 16.2 |
| Wheel | FR25 | 43.42 | 20.5 | 20 | 1 | 1 | 3.5 | 13 | 27.5 | 60 | 13 | 25 | 35.6 | 20 | 77 | 24 | 4.1 | 4.5 | 360 | 16.3 | 15 |
| - | FR25Z | 43.42 | 20.5 | 20 | 1 | 0 | 3.5 | 13 | 27.5 | 60 | 13 | 25 | 35.6 | 20 | 77 | 24 | 4.1 | 4.5 | 360 | 16.3 | 15 |
| - | FR35 | 61.25 | 30 | 25 | 1 | 1 | 7.5 | 18 | 42 | 84 | 17 | 40 | 56.9 | 30 | 35 | 4.1 | 4.5 | 500 | 28.4 | 32 | |
| - | FR35Z | 61.25 | 30 | 25 | 1 | 0 | 7.5 | 18 | 42 | 84 | 17 | 40 | 56.9 | 30 | 35 | 4.1 | 4.5 | 500 | 28.4 | 32 | |
| - | LR10 | - | 10.5 | 10 | 1 | 1 | 2 | 7 | 15.4 | 30 | 6.4 | 15 | 20.8 | 11 | 47 | - | 2.6 | 3 | 500 | 4.9 | 5.3 |
| - | LR10Z | - | 10.5 | 10 | 1 | 0 | 2 | 7 | 15.4 | 30 | 6.4 | 15 | 20.8 | 11 | 47 | - | 2.6 | 3 | 500 | 4.9 | 5.3 |
| Wheel | LR15 | - | 12 | 12 | 1 | 1 | 2 | 9 | 18.5 | 35 | 8.4 | 15 | 23.8 | 14 | 47 | - | 2.6 | 3 | 500 | 7.2 | 6.8 |
| - | LR15Z | - | 12 | 12 | 1 | 0 | 2 | 9 | 18.5 | 35 | 8.4 | 15 | 23.8 | 14 | 47 | - | 2.6 | 3 | 500 | 7.2 | 6.8 |
| - | LR20 | - | 16 | 15 | 1 | 1 | 3 | 11 | 22.5 | 46 | 10.5 | 20 | 22.7 | 18 | 72 | - | 2.6 | 3 | 500 | 10.2 | 9.5 |
| - | LR20Z | - | 16 | 15 | 1 | 0 | 3 | 11 | 22.5 | 46 | 10.5 | 20 | 22.7 | 18 | 72 | - | 2.6 | 3 | 500 | 10.2 | 9.5 |
| - | LR25 | - | 20.5 | 20 | 1 | 1 | 3.5 | 13 | 27.5 | 60 | 13 | 25 | 35.6 | 20 | 85 | - | 4.1 | 4.5 | 500 | 16.3 | 15 |
| - | LR25Z | - | 20.5 | 20 | 1 | 0 | 3.5 | 13 | 27.5 | 60 | 13 | 25 | 35.6 | 20 | 85 | - | 4.1 | 4.5 | 500 | 16.3 | 15 |
| - | LR35 | - | 30 | 25 | 1 | 1 | 7.5 | 18 | 42 | 84 | 17 | 40 | 56.9 | 30 | - | 4.1 | 4.5 | 500 | 28.4 | 32 | |
| - | LR35Z | - | 30 | 25 | 1 | 0 | 7.5 | 18 | 42 | 84 | 17 | 40 | 56.9 | 30 | - | 4.1 | 4.5 | 500 | 28.4 | 32 | |
