23200 Series Spherical Roller Bearing

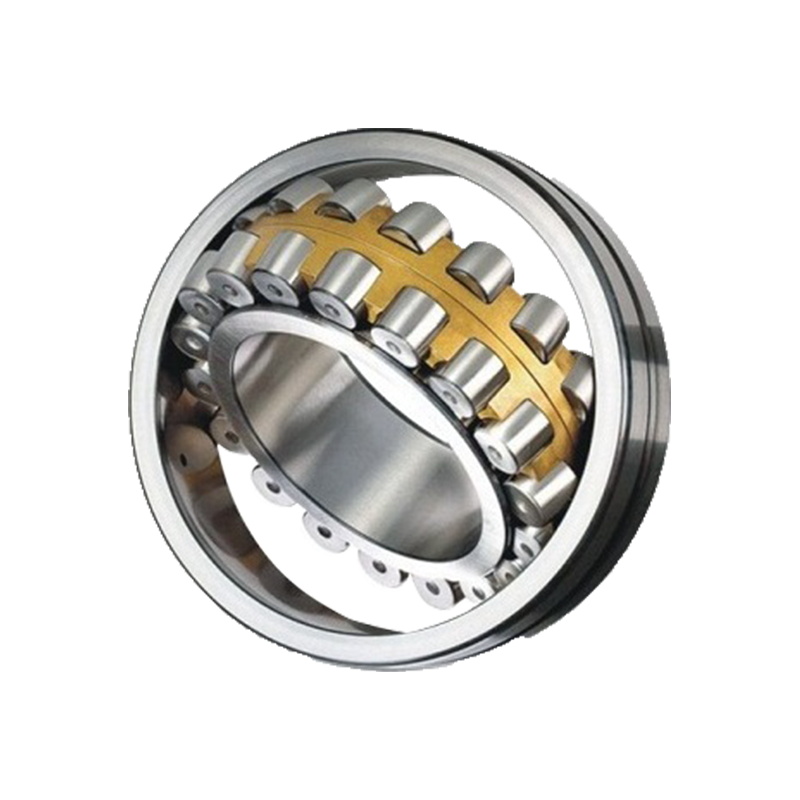

The 23200 series spherical roller bearing accommodates radial loads and bidirectional axial loads through its double-row symmetrical roller configuration. The outer ring incorporates a spherical raceway that enables self-alignment, compensating for angular misalignment between shaft and housing. This series features an optimized roller geometry with a machined brass or steel cage that maintains roller spacing under varying load conditions. The bearing operates within a temperature range of -30°C to +150°C for standard steel retainers. Each unit includes a logarithmic profile on rollers and raceways to reduce edge stresses. The internal clearance group CN is standard, with C3 and C4 available upon specification. Load ratings follow ISO 281 calculation methods.

Core Advantages

Misalignment compensation up to 2 degrees under static conditions or 1.5 degrees under dynamic operation
Double-row roller arrangement distributes radial loads across two contact lines
Interchangeable dimensional parameters according to ISO 15:2017 standard
Through-hardened bearing steel with 58-62 HRC surface hardness
Removable inner ring for mounting on cylindrical or tapered adapter sleeves

Product Characteristics

Bore diameter range	40 mm to 200 mm
Outer diameter range	80 mm to 420 mm
Width range	23 mm to 138 mm
Dynamic load rating (C)	98 kN to 1680 kN
Static load rating (C0)	127 kN to 2360 kN
Limiting speed (grease)	2000 rpm to 5000 rpm
Limiting speed (oil)	2600 rpm to 6700 rpm
Cage material options	Brass, steel, polyamide
Internal clearance classes	CN, C3, C4

Application Scenarios

Vibrating screens and eccentric drives in aggregate processing
Industrial gearboxes with shaft deflection requirements
Wind turbine main shafts and yaw/pitch mechanisms
Paper manufacturing rolls and drying cylinders
Mining conveyors with long shaft spans
Steel mill continuous casting equipment

Frequently Asked Questions

What lubrication method applies to the 23200 series?

Grease lubrication with NLGI grade 2 or 3 lithium-complex soap is standard for speeds below 70% of limiting speed. Oil circulation or oil bath lubrication applies when operating temperatures exceed 100°C or speeds approach the limiting value.

How to select the correct internal clearance?

CN clearance suits normal operating temperatures between 20°C and 80°C with steel shafts. C3 clearance applies when temperature differential between inner ring and housing exceeds 15°C or when interference fit exceeds 0.05% of shaft diameter.

What indicates bearing replacement necessity?

Increase in operating vibration amplitude exceeding ISO 10816-3 thresholds, rise in bearing housing temperature above 95°C under consistent load, or audible metallic grinding during rotation.

Installation Precautions

Mounting method

Use induction heater to expand inner ring uniformly. Maximum heating temperature limited to 110°C for standard bearing steel. Do not exceed 120°C to avoid tempering effects on hardness.

Shaft fit recommendation

For rotating shaft applications, use interference fit with f6 or m6 tolerance. For stationary shaft applications, use h6 or h7 transition fit. Housing bore tolerance recommended as H7 for split housings or P6 for solid housings.

Lubrication interval

Regrease every 1000 operating hours or three-month period under normal conditions. For ambient temperatures above 70°C, reduce regreasing interval to 500 hours.

Storage conditions

Store in original packaging with corrosion inhibitor intact. Ambient humidity below 65% RH, temperature range 0°C to 40°C. Avoid stacking more than three pallets.

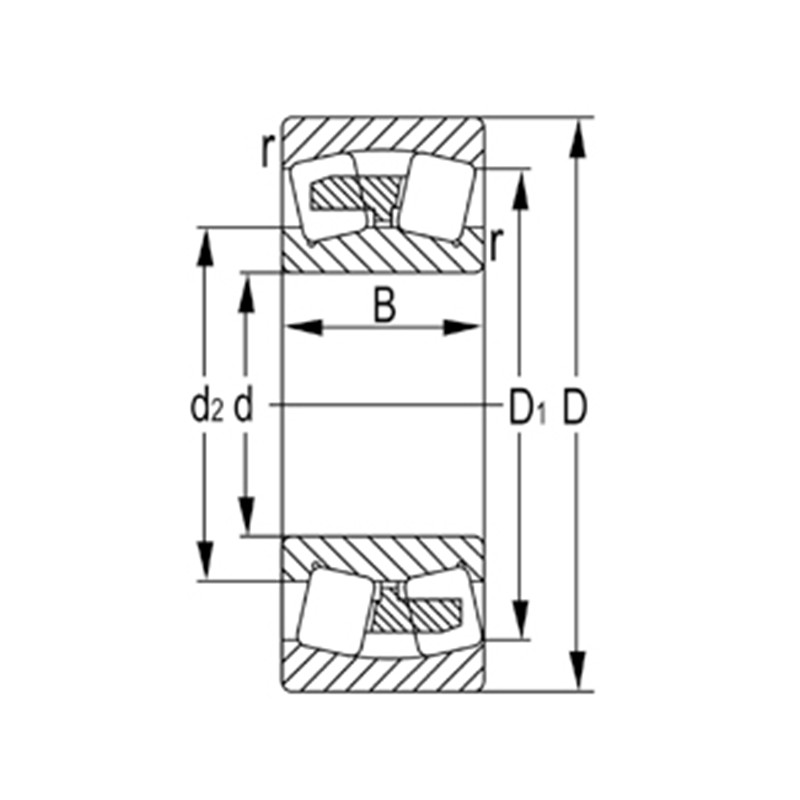

Designation	Principal Dimensions(mm)				Basic Load Ratings(KN)		Limited Speed(rpm)		Weight
Designation	d	D	B	rs min	Dynamic(Cr)	Static(Cor)	Grease	Oil	(kg)
23218	90	160	52.4	2	315	455	1800	2800	4.45
23218K	90	160	52.4	2	315	455	1800	2800	4.32
23218KW33C3	90	160	52.4	2	315	455	1800	2800	4.32
23218W33C3	90	160	52.4	2	315	455	1800	2800	4.45
23220	100	180	60.3	2.1	405	580	1600	2500	6.47
23220K	100	180	60.3	2.1	405	580	1600	2500	6.28
23220KW33C3	100	180	60.3	2.1	405	580	1600	2500	6.28
23220W33C3	100	180	60.3	2.1	405	580	1600	2500	6.47
23222	110	200	69.8	2.1	515	760	1400	2200	9.71
23222K	110	200	69.8	2.1	515	760	1400	2200	9.43
23222KW33C3	110	200	69.8	2.1	515	760	1400	2200	9.43
23222W33C3	110	200	69.8	2.1	515	760	1400	2200	9.71
23224	120	215	76	2.1	585	880	1300	2000	12.1
23224K	120	215	76	2.1	585	880	1300	2000	11.7
23224KW33C3	120	215	76	2.1	585	880	1300	2000	11.7
23224W33C3	120	215	76	2.1	585	880	1300	2000	12.1
23226	130	230	80	3	685	1060	1200	1900	14.3
23226K	130	230	80	3	685	1060	1200	1900	13.9
23226KW33C3	130	230	80	3	685	1060	1200	1900	13.9
23226W33C3	130	230	80	3	685	1060	1200	1900	14.3
23228	140	250	88	3	805	1270	1100	1700	18.8
23228K	140	250	88	3	805	1270	1100	1700	18.2
23228KW33C3	140	250	88	3	805	1270	1100	1700	18.2
23228W33C3	140	250	88	3	805	1270	1100	1700	18.8
23230	150	270	96	3	935	1460	1000	1600	24.1
23230K	150	270	96	3	935	1460	1000	1600	23.4
23230KW33C3	150	270	96	3	935	1460	1000	1600	23.4
23230W33C3	150	270	96	3	935	1460	1000	1600	24.1
23232	160	290	104	3	1050	1660	960	1500	30
23232K	160	290	104	3	1050	1660	960	1500	29.1
23232KW33C3	160	290	104	3	1050	1660	960	1500	29.1
23232W33C3	160	290	104	3	1050	1660	960	1500	30
23234	170	310	110	4	1180	1960	910	1400	36.8
23234K	170	310	110	4	1180	1960	910	1400	35.7
23234KW33C3	170	310	110	4	1180	1960	910	1400	35.7
23234W33C3	170	310	110	4	1180	1960	910	1400	36.8
23236	180	320	112	4	1230	2000	850	1300	39
23236K	180	320	112	4	1230	2000	850	1300	37.8
23236KW33C3	180	320	112	4	1230	2000	850	1300	37.8
23236W33C3	180	320	112	4	1230	2000	850	1300	39
23238	190	340	120	4	1400	2330	790	1200	47.6
23238K	190	340	120	4	1400	2330	790	1200	46.2
23238KW33C3	190	340	120	4	1400	2330	790	1200	46.2
23238W33C3	190	340	120	4	1400	2330	790	1200	47.6
23240	200	360	128	4	1610	2640	750	1200	57.2
23240K	200	360	128	4	1610	2640	750	1200	55.5
23240KW33C3	200	360	128	4	1610	2640	750	1200	55.5
23240W33C3	200	360	128	4	1610	2640	750	1200	57.2
23244	220	400	144	4	2010	3350	670	1000	80
23244K	220	400	144	4	2010	3350	670	1000	77.6
23244KW33C3	220	400	144	4	2010	3350	670	1000	77.6
23244W33C3	220	400	144	4	2010	3350	670	1000	80
23248	240	440	160	4	2430	4100	610	940	108
23248K	240	440	160	4	2430	4100	610	940	105
23248KW33C3	240	440	160	4	2430	4100	610	940	105
23248W33C3	240	440	160	4	2430	4100	610	940	108
23252	260	480	174	5	2760	4700	560	860	141
23252K	260	480	174	5	2760	4700	560	860	137
23252KW33C3	260	480	174	5	2760	4700	560	860	137
23252W33C3	260	480	174	5	2760	4700	560	860	141
23256	280	500	176	5	2930	5150	510	790	150
23256K	280	500	176	5	2930	5150	510	790	145
23256KW33C3	280	500	176	5	2930	5150	510	790	145
23256W33C3	280	500	176	5	2930	5150	510	790	150
23260	300	540	192	5	3450	6000	470	730	193
23260K	300	540	192	5	3450	6000	470	730	187
23260KW33C3	300	540	192	5	3450	6000	470	730	187
23260W33C3	300	540	192	5	3450	6000	470	730	193
