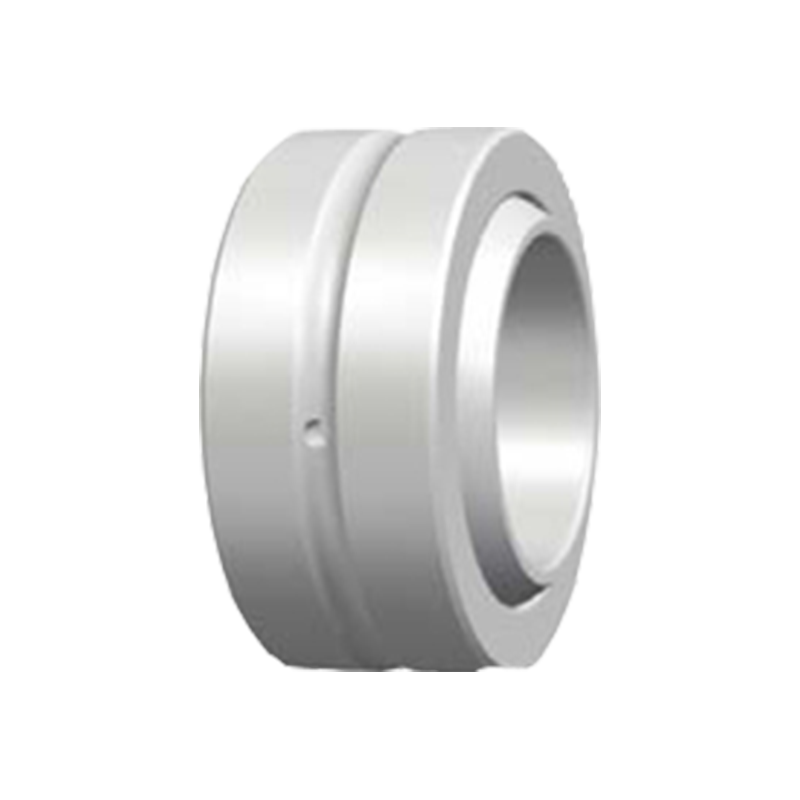

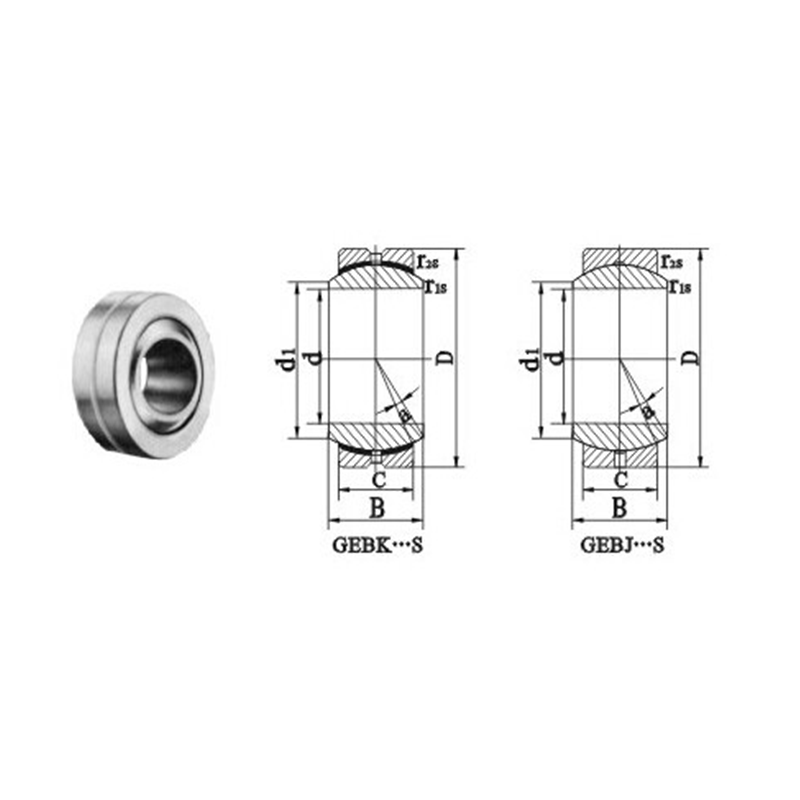

GEBJ...S

Core Technical Advantages

• Misalignment Compensation: The spherical geometry enables the bearing to adjust to angular deviations, preventing edge loading and premature fatigue.
• Load Distribution: Optimized contact area ensures uniform pressure distribution under static and dynamic load conditions.
• Wear Resistance: Hardened sliding surfaces and specialized phosphate or chrome coatings provide a robust barrier against fretting corrosion and surface galling.
• Compact Design: High load-carrying capacity relative to its cross-sectional area allows for integration into space-constrained transmission housings.

Key Product Characteristics

Primary Application Scenarios

• Automatic Transmission Linkages: Facilitates smooth motion in shift selectors and control rods where pivot points undergo complex movement.
• Chassis Suspension Systems: Utilized in control arms and tie rods to manage oscillatory stress in automotive steering and suspension.
• Torque Converters: Supporting internal components that require radial alignment under high-torque transmission phases.
• Industrial Actuators: Applied in hydraulic or pneumatic cylinder ends within automated manufacturing environments.

Maintenance and Storage Guidelines

Storage Conditions

The GEBJ Spherical Plain Bearing must be stored in its original, unopened anti-corrosion packaging. Maintain a controlled environment with a relative humidity of less than 60% and a temperature range between 15°C and 25°C. Avoid stacking heavy loads directly on the bearing boxes to prevent geometric distortion of the outer rings.

Installation and Usage Precautions

• Fitment Tolerance: Ensure the housing bore and shaft diameter conform to recommended tolerance classes (e.g., H7/m6) to prevent excessive interference or radial play.
• Force Application: During installation, pressure should be applied uniformly to the ring being fitted; avoid transmitting mounting forces through the spherical sliding surfaces.
• Lubrication Compatibility: If using relubricatable types, ensure the grease is compatible with the transmission fluid environment and thermal requirements of the gearbox.
• Surface Protection: Periodically inspect for seal integrity in harsh environments to prevent the ingress of abrasive contaminants into the sliding interface.
