GE...LO

GE...LO spherical plain bearings are high-performance bearings widely used in mechanical engineering and automation fields. Its design enables the bearings to withstand loads in multiple dimensions and adapt to complex working environments. This series of bearings are made of high-quality materials and have excellent wear resistance and corrosion resistance, which can effectively extend their service life. In addition, GE...LO bearings have self-lubricating properties, reducing maintenance costs and downtime, and improving equipment operating efficiency. Its unique spherical contact design can withstand large radial and axial loads and is suitable for operation under vibration and shock conditions. It is widely used in aerospace, automobile manufacturing, metallurgical equipment and other industrial equipment to provide stable and reliable support for various machinery.

Send inquiry

SPHERICAL PLAIN · AUTOMOTIVE · MAINTENANCE-FREE

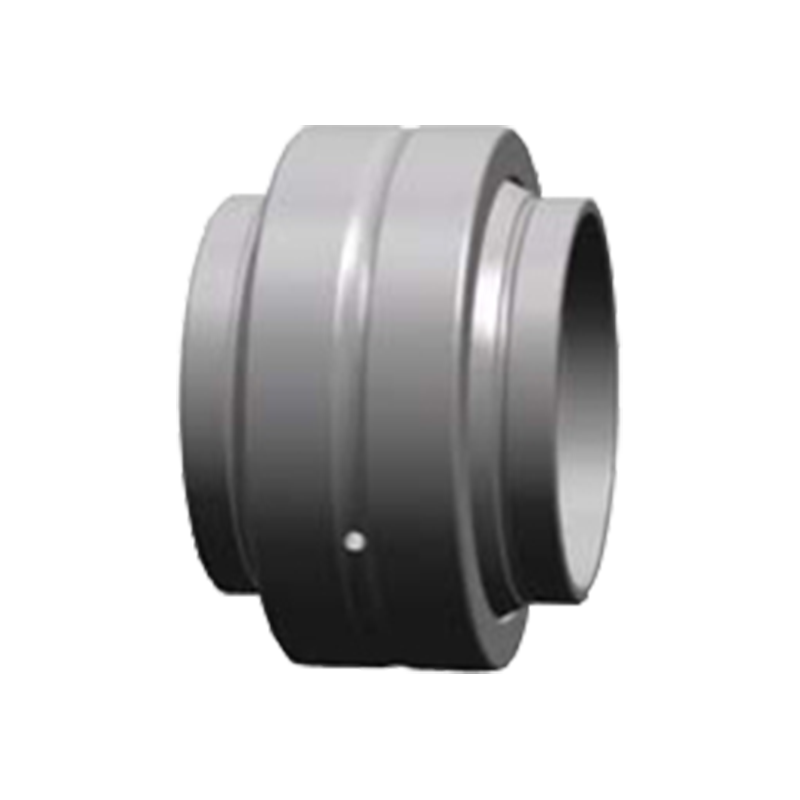

GE...LO Automatic Transmission Spherical Plain Bearing

self-lubricating steel-on-PTFE misalignment tolerant

The GE...LO series spherical plain bearings are specifically engineered for automatic transmission applications where oscillating motion, high loads, and limited maintenance access are critical factors. Featuring a steel-on-PTFE composite sliding surface, the bearing provides maintenance-free operation with excellent wear resistance and low friction coefficients. The spherical inner ring design compensates for angular misalignment between shaft and housing, reducing stress on surrounding transmission components. The bearing is pre-lubricated with a special grease that remains effective across a wide temperature range of -40°C to +150°C. The LO designation indicates the bearing is equipped with a lubrication groove and holes in the outer ring, allowing for relubrication if required. Common applications include shift selector pivots, linkage joints, and actuator mounting points in modern automatic transmissions.

PTFE composite sliding surface

Steel-on-PTFE interface provides low friction and maintenance-free operation with excellent wear resistance under oscillating loads.

Misalignment compensation

Spherical inner ring accommodates angular misalignment up to 6 degrees, reducing stress on transmission components and linkages.

Relubrication capability

LO designation includes lubrication groove and holes in the outer ring for optional regreasing in demanding applications.

Wide temperature range

Operates from -40°C to +150°C, compatible with automatic transmission fluid (ATF) and extreme thermal cycling conditions.

Technical specifications

Bore diameter10mm - 50mm

Outer diameter20mm - 75mm

Width range8mm - 28mm

Sliding surfaceSteel-on-PTFE composite

Misalignment angleUp to 6 degrees

Dynamic load rating12kN - 80kN

Static load rating25kN - 160kN

Temperature range-40°C to +150°C

Lubrication featureLO (groove + holes in outer ring)

MaterialGCr15 / SAE 52100 with PTFE coating

Application scenarios

Shift selector pivots

Pivot points for gear selection linkages in automatic transmission valve bodies and shift mechanisms.

Actuator mounting points

Support points for hydraulic and electric actuators controlling clutch and gear engagement.

Linkage joints

Connection points between transmission components requiring limited angular movement.

Pump and valve assemblies

Support for hydraulic pump pivots and valve train components in automatic transmissions.

Technical inquiries

What does the LO designation mean in GE...LO bearings?

LO indicates the bearing is equipped with a lubrication groove and lubrication holes in the outer ring. This allows for relubrication during service intervals if the application demands extended maintenance cycles or if the bearing is exposed to high contamination levels.

What is the typical service life of GE...LO bearings?

Under normal operating conditions with proper alignment and load, GE...LO bearings provide service life exceeding 500,000 oscillation cycles. The PTFE composite sliding surface provides excellent wear resistance and maintains low friction over the bearing's operational life.

Can GE...LO bearings operate without relubrication?

Yes, the PTFE composite sliding surface provides inherent lubrication, making the bearing maintenance-free for most applications. The LO feature is an optional capability for severe operating conditions, not a requirement for normal service.

What is the maximum misalignment angle for GE...LO bearings?

GE...LO bearings can accommodate angular misalignment up to 6 degrees between the shaft and housing. Exceeding this limit can cause edge loading and reduce bearing performance and service life.

Shaft hardness

Recommended shaft hardness is 58-62 HRC with surface roughness Ra ≤ 0.4 µm for optimal PTFE composite performance.

Housing bore tolerance

Recommended housing tolerance is H7 for standard applications. Ensure bore is free of burrs and sharp edges.

Lubrication compatibility

PTFE composite is compatible with most automatic transmission fluids. Avoid solvents and aggressive chemicals that may damage the PTFE layer.

Storage

Store in original packaging in a clean, dry environment. Avoid exposure to dust and contaminants that may embed in the PTFE surface.

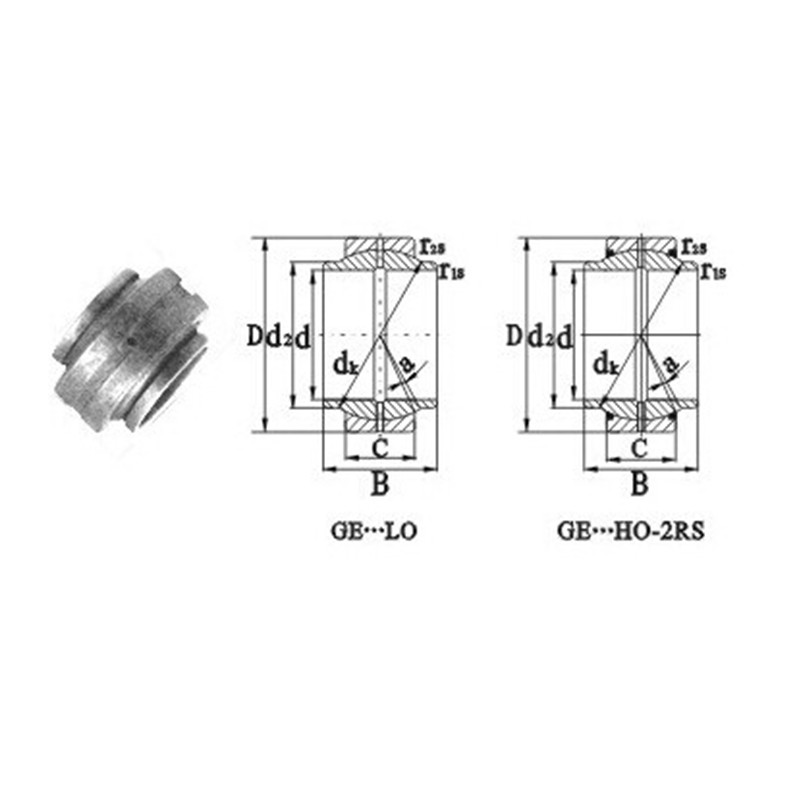

Designation	Dimensions (mm)								α· ≈	Load Ratings (KN)		Weight (kg)
Designation	d	d2 min	D	B	C	dk	r1s min	r2s min	α· ≈	C	CO	Weight (kg)
GE20LO	20	25	35	20	12	29	0.3	0.3	4	30	146	0.07
GE25LO	25	30	42	25	16	35.5	0.6	0.6	4	48	240	0.12
GE32LO	32	38	52	32	18	44	0.6	1	4	67	335	0.2
GB40LO	40	46	62	40	22	53	0.6	1	4	100	500	0.34
GE50LO	50	57	75	50	28	66	0.6	1	4	156	780	0.56
GE63LO	63	71.5	95	63	36	83	0.1	1	4	255	1270	1.2
GE70LO	70	79	105	70	40	92	1	1	4	315	1560	1.7
GE8OLO	80	91	120	80	45	105	1	1	4	400	2000	2.4
GE20HO-2RS	20	24	35	24	12	29	0.2	0.3	3	30	146	0.057
GE25HO-2RS	25	29	42	29	16	35.5	0.2	0.6	3	48	240	0.1
GE30HO-2RS	30	34.2	47	30	18	40.7	0.2	0.6	3	62	310	0.14
GE35HO-2RS	35	40	55	35	20	47	0.3	1	3	80	400	0.24
GE40HO-2RS	40	45	62	38	22	53	0.3	1	3	100	500	0.29
GE45HO-2RS	45	51.5	68	40	25	60	0.3	1	3	127	640	0.43
GE50HO-2RS	50	56.5	75	43	28	66	0.3	1	3	156	780	0.54
GE60HO-2RS	60	67.7	90	54	36	80	0.3	1	3	245	1220	1.1
GE70HO-2RS	70	78	105	65	40	92	0.3	1	3	315	1560	1.6
GE80HO-2RS	80	90	120	74	45	105	0.3	1	3	400	2000	2.4
