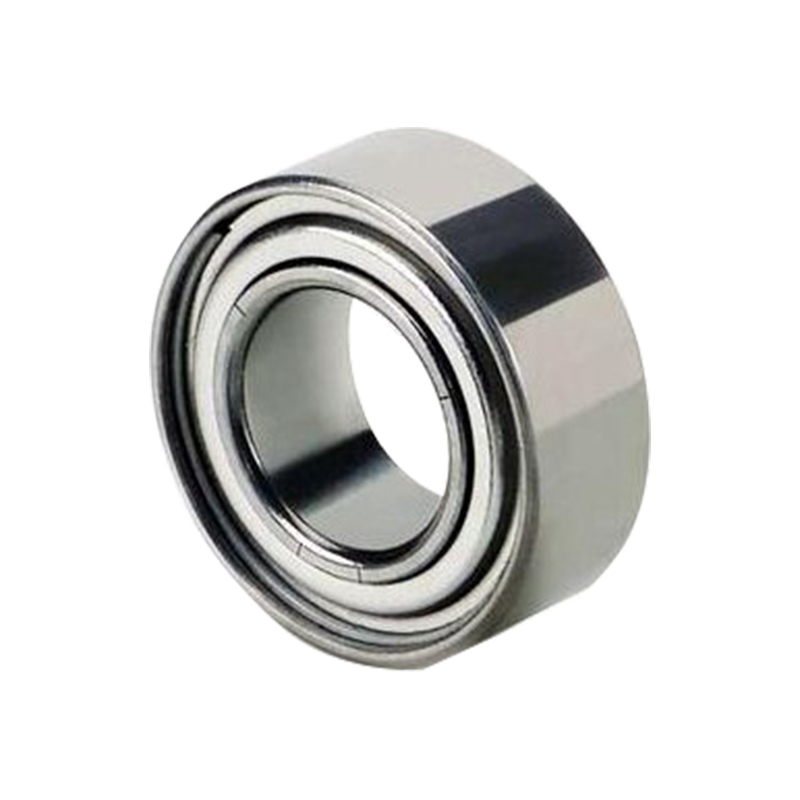

Series 60 metric miniature ball bearings are small rolling bearings commonly used in applications where space is limited. It comes in sizes ranging from typically 1mm to 9mm in inner diameter and up to 30mm in outer diameter, suitable for high precision, low friction and high-speed rotation needs. 60 series bearings are widely used in medical equipment, small motors, instruments, robots and other fields due to their lightweight design and compact structure. Its double-sealed design provides good dust and lubrication protection for extended service life. In addition, this series of bearings are made of high-quality materials and have high wear resistance and good corrosion resistance, ensuring reliable operation in harsh environments.
Product parameters

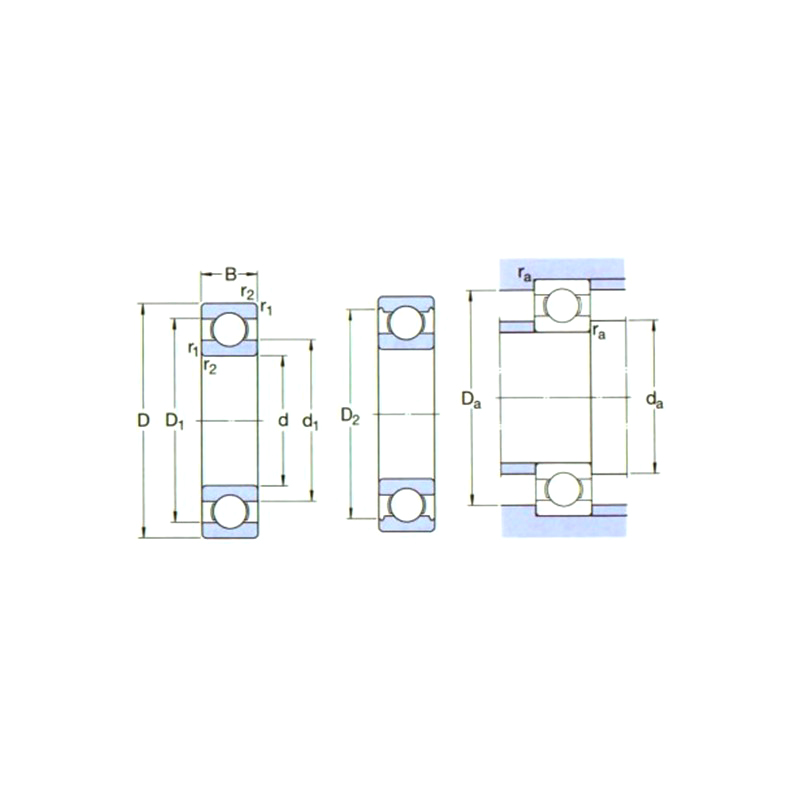

| Designation | Principal dimensions（mm） | Basic load ratings(N) | Basic load ratings{kgf} | Speed ratings(rpm) | Abutment and fillet dimensions (mm) | Weight(g) | |||||||||||||||||
| With shield | Open type | With seal VV | With seal DD | d | D | B | B1 | r(min) | Cr | Cor | Cr | Cor | Grease | Oil | da(min) | db(max) | Da(Max) | Db(min) | ra(max) | rb(max) | Open type | With shield | |
| ZZ | D·D | Z | |||||||||||||||||||||
| 601X | 601XZZ | - | - | 1.5 | 6 | 2.5 | 3 | 0.15 | 330 | 98 | 34 | 10 | 75000 | - | 90000 | 2.7 | 3 | 4.8 | 0.211111111 | 0.15 | 0.15 | 0.33 | 0.38 |
| 602 | 602ZZ | - | - | 2 | 7 | 2.8 | 3.5 | 0.15 | 385 | 127 | 39 | 13 | 63000 | - | 75000 | 3.2 | 3.8 | 5.8 | 6.2 | 0.15 | 0.15 | 0.51 | 0.58 |
| 602X | 602XZZ | - | - | 2.5 | 8 | 2.8 | 4 | 0.15 | 550 | 175 | 56 | 18 | 60000 | - | 71000 | 3.7 | 4.1 | 6.8 | 7 | 0.15 | 0.15 | 0.63 | 0.83 |
| 603 | 603ZZ | - | - | 3 | 9 | 3 | 5 | 0.15 | 570 | 187 | 58 | 19 | 56000 | - | 67000 | 4.2 | 4.3 | 7.8 | 7.9 | 0.15 | 0.15 | 0.87 | 1.45 |
| 604 | 604ZZ | - | - | 4 | 12 | 4 | 4 | 0.2 | 960 | 345 | 98 | 35 | 48000 | - | 56000 | 5.6 | 5.6 | 10.4 | 9.9 | 0.2 | 0.2 | 2.25 | 2.29 |
| 605 | 605ZZ | - | 605DD | 5 | 14 | 5 | 5 | 0.2 | 1330 | 505 | 135 | 52 | 40000 | 38000 | 50000 | 6.6 | 6.9 | 12.4 | 12.2 | 0.2 | 0.2 | 3.54 | 3.48 |
| 606 | 606ZZ | 606VV | 606DD | 6 | 17 | 6 | 6 | 0.3 | 2260 | 835 | 231 | 85 | 38000 | 34000 | 45000 | 8 | 8.2 | 15 | 14.8 | 0.3 | 0.3 | 5.97 | 6.08 |
| 607 | 607ZZ1 | 607VV | 607DD | 7 | 19 | 6 | 6 | 0.3 | 2340 | 885 | 238 | 90 | 36000 | 32000 | 43000 | 9 | 9.1 | 17 | 16.5 | 0.3 | 0.3 | 7.67 | 7.51 |
| 608 | 608ZZ | 608VV | 608DD | 8 | 22 | 7 | 7 | 0.3 | 3300 | 1370 | 335 | 140 | 34000 | 28000 | 40000 | 10 | 10.5 | 20 | 19 | 0.3 | 0.3 | 12.1 | 12.2 |
| 609 | 609ZZ | 609VV | 609DD | 9 | 24 | 7 | 7 | 0.3 | 3350 | 1430 | 340 | 146 | 32000 | 24000 | 38000 | 11 | 12 | 22.8 | 20.5 | 0.3 | 0.3 | 14.5 | 14.7 |
