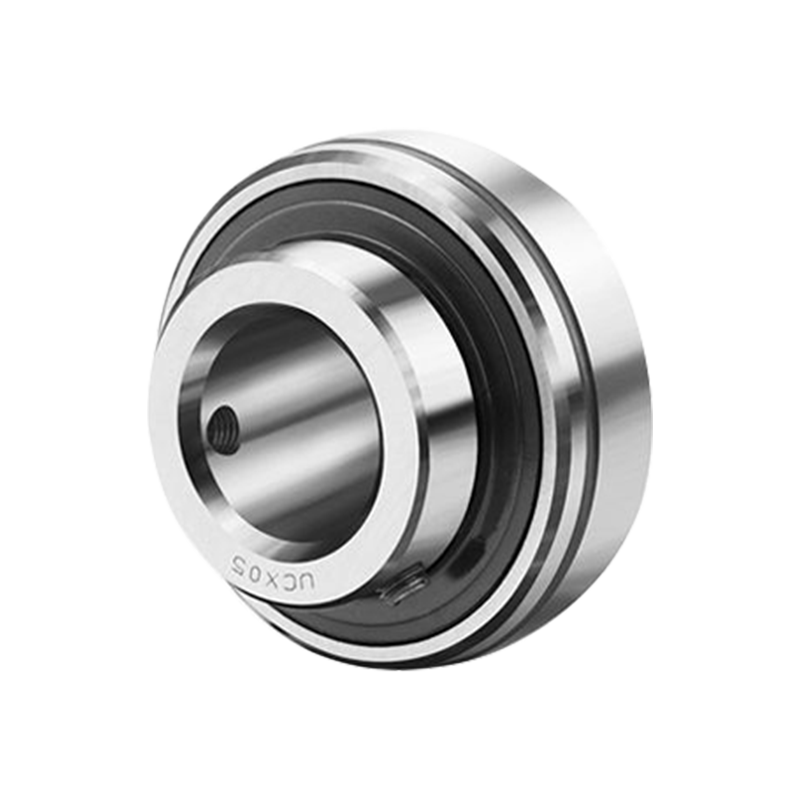

UCX Series

UCX series insert bearings are high performance rolling bearings designed to provide excellent support and durability for a variety of industrial applications. Its structural features include an inner ring, outer ring and sealing design, which can effectively prevent dirt and liquid from entering, ensuring long-term operation of the bearing in harsh environments. The UCX series is particularly suitable for use in motors, reducers and other rotating equipment and can withstand higher loads and vibrations. This series of bearings are made of high-quality materials and have good corrosion resistance and wear resistance, which can extend their service life. In addition, UCX series bearings are relatively easy to install and maintain, are suitable for equipment of different specifications and needs, and are widely used in machinery manufacturing, agriculture, food processing and other industries.

Send inquiry

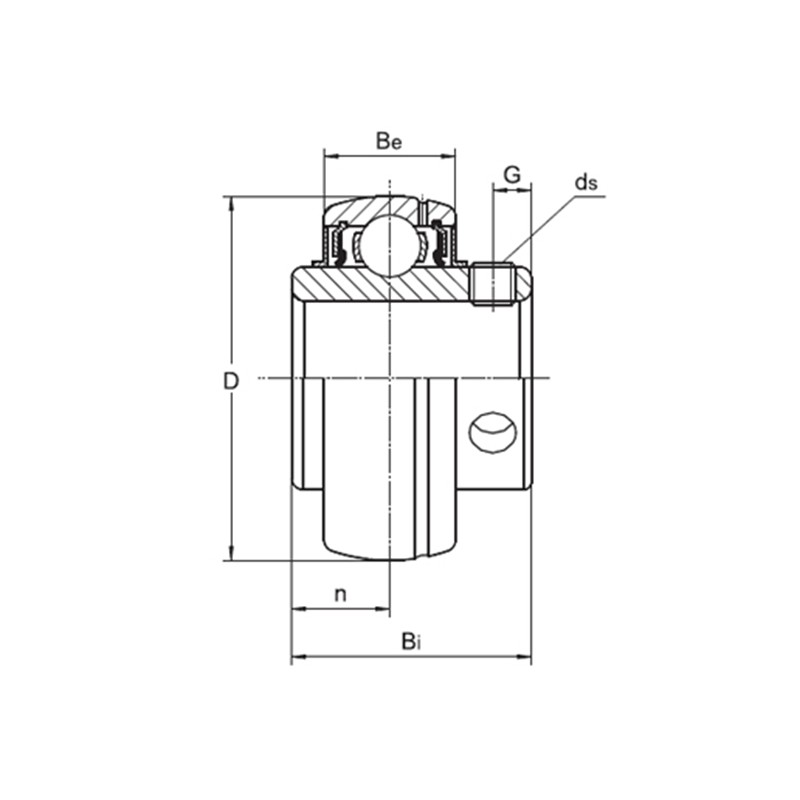

Product parameters

Bearing No. d Dimensions(mm)
(mm) (in.) D Bi Be n m G ds
UCX05-14 22.225 0.875 62 38.1 19 15.9 22.2 6 1/4-28UNF
UCX05 25 62 38.1 19 15.9 22.2 6 M6x1.0
UCX05-16 25.4 1 62 38.1 19 15.9 22.2 6 1/4-28UNF
UCX06 30 72 42.9 20 17.5 25.4 6.5 M8x1.0
UCX06-19 30.163 1.1875 72 42.9 20 17.5 25.4 6.5 5/16-24UNF
UCX06-20 31.75 1.25 72 42.9 20 17.5 25.4 6.5 5/16-24UNF
UCX07-20 31.75 1.25 80 49.2 21 19 30.2 8 5/16-24UNF
UCX07-22 34.925 1.375 80 49.2 21 19 30.2 8 5/16-24UNF
UCX07 35 80 49.2 21 19 30.2 8 M8x1.0
UCX07-23 36.513 1.4375 80 49.2 21 19 30.2 8 5/16-24UNF
UCX08-24 38.1 1.5 85 49.2 22 19 30.2 8 5/16-24UNF
UCX08 40 85 49.2 22 19 30.2 8 M8x1.0
UCX09-27 42.863 1.6875 90 51.6 24 19 32.6 10 3/8-24UNF
UCX09-28 44.45 1.75 90 51.6 24 19 32.6 10 3/8-24UNF
UCX09 45 90 51.6 24 19 32.6 10 M10x1.25
UCX10-31 49.213 1.9375 100 55.6 25 22.2 33.4 10 3/8-24UNF
UCX10 50 100 55.6 25 22.2 33.4 10 M10x1.25
UCX10-32 50.8 2 100 55.6 25 22.2 33.4 10 3/8-24UNF
UCX11-32 50.8 2 110 65.1 27 25.4 39.7 10 3/8-24UNF
UCX11 55 110 65.1 27 25.4 39.7 10 M10x1.25
UCX11-35 55.563 2.1875 110 65.1 27 25.4 39.7 10 3/8-24UNF
UCX11-36 110 65.1 27 25.4 39.7 10 3/8-24UNF
UCX12-36 57.15 2.25 120 65.1 28 25.4 39.7 10 3/8-24UNF
UCX12 60 120 65.1 28 25.4 39.7 10 M10x1.25
UCX12-38 60.325 2.375 120 65.1 28 25.4 39.7 10 3/8-24UNF
UCX12-39 61.913 2.4375 120 65.1 28 25.4 39.7 10 3/8-24UNF
UCX13-40 63.5 2.5 125 74.6 30 30.2 44.4 12 7/16-20UNF
UCX13 65 125 74.6 30 30.2 44.4 12 M12x1.5
UCX14-44 69.85 2.75 130 77.8 30 33.3 44.5 12 7/16-20UNF
UCX14 70 130 77.8 30 33.3 44.5 12 M12x1.5
UCX15-47 74.613 2.9375 140 82.6 33 33.3 49.3 14 7/16-20UNF
UCX15 75 140 82.6 33 33.3 49.3 14 M12x1.5
UCX15-48 76.2 3 140 82.6 33 33.3 49.3 14 7/16-20UNF
UCX16-50 79.375 3.125 150 85.7 35 34.1 51.6 14 7/16-20UNF
UCX16 80 150 85.7 35 34.1 51.6 14 M12x1.5
UCX17-52 82.55 3.25 160 96 37 39.7 56.3 15 1/2-20UNF
UCX17 85 160 96 37 39.7 56.3 15 M12x1.5
UCX18-56 88.9 3.5 170 104 39 42.9 61.1 16 1/2-20UNF
UCX18 90 170 104 39 42.9 61.1 16 M14x1.5
UCX20 100 190 117.5 44 49.2 68.3 18 M16x1.5
UCX20-64 101.6 4 190 117.5 44 49.2 68.3 18 5/8-18UNF
