DOUBLE ROW · 30° CONTACT · ZZ SHIELDED

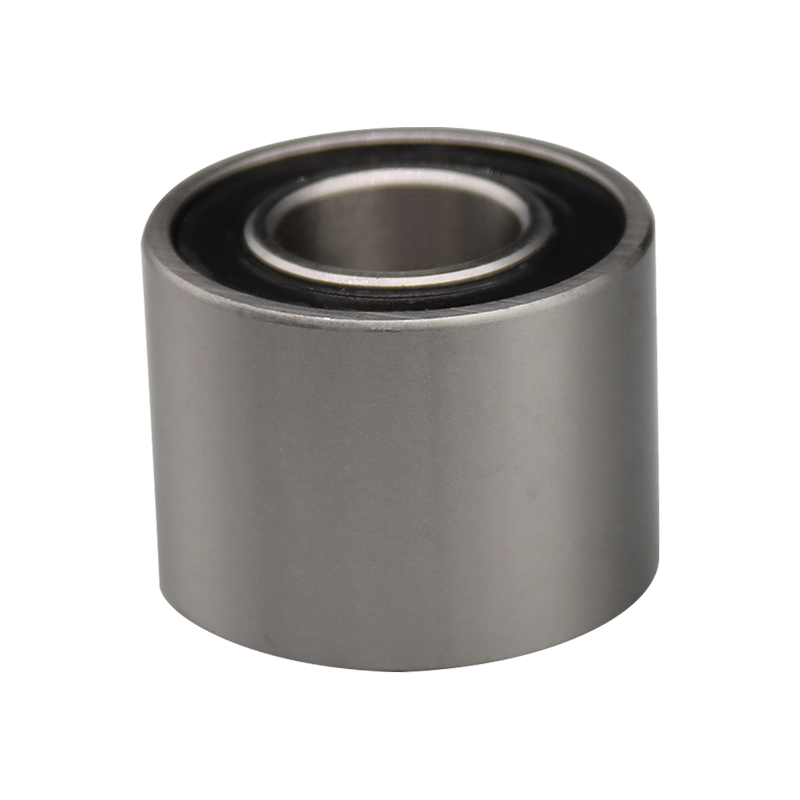

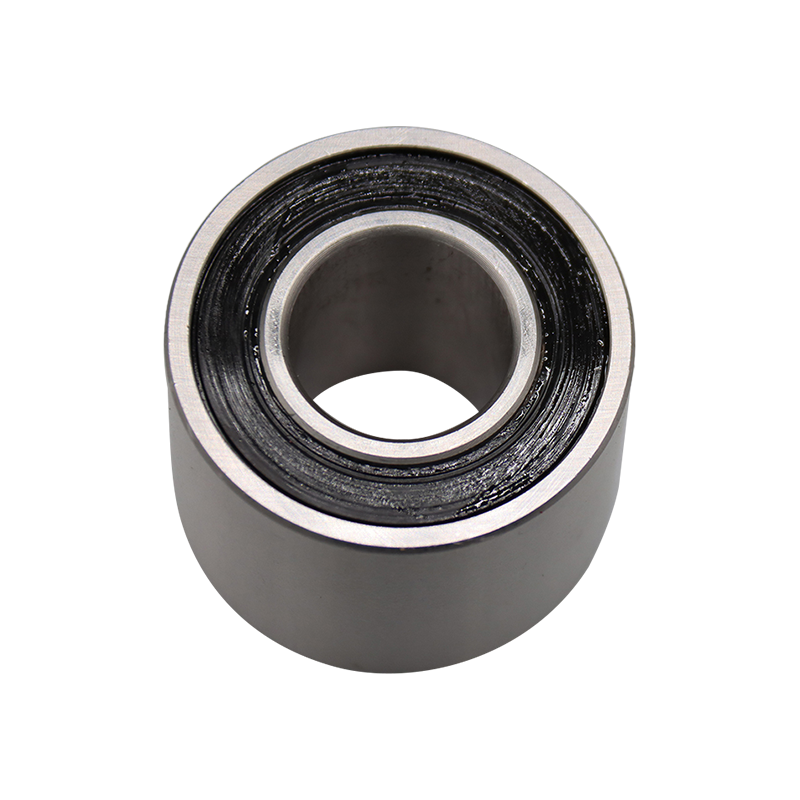

3000A-2Z Double Row Angular Contact Ball Bearings

30° contact angle ZZ metal shields pre-greased

The 3000A-2Z series double row angular contact ball bearings are engineered for applications requiring high axial and radial load capacity within a compact axial envelope. The double row configuration provides bidirectional axial support while maintaining a narrow width compared to paired single-row bearings. The 30° contact angle optimizes the balance between axial stiffness and radial load capacity. Equipped with 2Z metal shields on both sides, these bearings provide effective protection against large particles while maintaining low friction torque. Pre-lubricated with high-quality lithium grease, the bearings offer maintenance-free operation for extended service intervals. Operating temperature ranges from -30°C to +110°C. Typical applications include pumps, gearboxes, electric motors, and industrial machinery where space efficiency and high load capacity are essential.

Bidirectional axial support

Double row configuration provides axial load capacity in both directions, eliminating the need for paired single-row bearings.

Optimized contact angle

30° contact angle delivers balanced performance between axial stiffness and radial load capacity for versatile applications.

2Z shielding system

Metal shields on both sides provide effective protection against large particles while maintaining low friction torque.

Compact axial width

Narrow width design fits limited axial spaces while providing the load capacity of two single-row bearings.

Technical specifications

Bore diameter d10mm - 40mm

Outer diameter D30mm - 80mm

Width B14mm - 28mm

Contact angle30° nominal

Dynamic load C8.2kN - 32.5kN

Static load C05.6kN - 22.8kN

Limiting speed (grease)6000 - 16000 rpm

Shielding type2Z (metal shields)

Precision gradeP0 / P5

Cage materialGlass fiber reinforced PA66

Application scenarios

Industrial pumps

Centrifugal pumps and positive displacement pumps requiring bidirectional axial support.

Gearboxes

Shaft support in reduction drives and power transmission systems with limited axial space.

Electric motors

Motor shaft support with preload control for precise rotor positioning.

Agricultural machinery

Conveyor rollers and drive shafts in harvesters and tractors.

Technical inquiries

What is the difference between 2Z and 2RS sealing?

2Z refers to metal shields on both sides, which protect against large particles and provide low friction torque. 2RS refers to contact rubber seals on both sides, which provide complete sealing against moisture and contaminants but with higher friction torque.

How do I set preload for 3000A-2Z bearings?

3000A-2Z bearings are supplied with internal preload settings optimized for typical applications. For specific preload requirements, consult the manufacturer. In most cases, the bearing is designed for standard preload with no additional adjustment needed.

Can 3000A-2Z bearings accommodate misalignment?

Angular contact bearings have limited misalignment capability. The maximum recommended angular misalignment is less than 0.05 degrees. For applications with misalignment, consider spherical roller bearings or self-aligning ball bearings.

Mounting

Apply force evenly to the ring being mounted. Use a press with appropriate support sleeves. Do not apply force through rolling elements.

Preload consideration

Excessive preload can cause overheating and premature fatigue. Follow manufacturer specifications for housing and shaft fits.

Storage

Store in original packaging in a dry, clean area with stable temperature. Avoid exposure to corrosive atmospheres.

Lubrication

Pre-lubricated for life. No initial lubrication required. For harsh conditions, consult manufacturer for relubrication options.

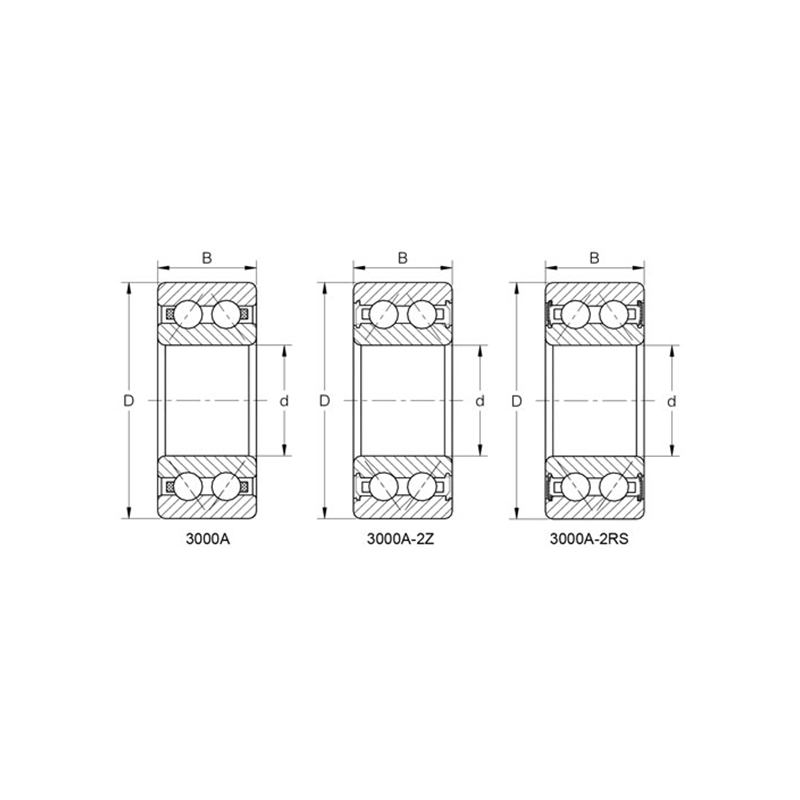

Designation	Principal Dimensions(mm)			Basic Load Ratings(KN)		Limited Speed(rpm)		Weight
Designation	d	D	B	Dynamic(Cr)	Static(Cor)	Grease	Oil	(kg)
3000A-2Z	10	26	12	5.5	3.2	18000	-	0.022
3200A-2Z	10	30	14.3	7.5	4.3	16000	-	0.05
3001A-2Z	12	28	12	6.1	3.7	17000	-	0.025
3201A-2Z	12	32	15.9	9	4.9	14000	-	0.058
3002A-2Z	15	32	13	8.5	5.4	14500	-	0.036
3202A-2Z	15	35	15.9	10	6	11000	-	0.066
3302A-2Z	15	42	19	14	8	10000	-	0.13
3003A-2Z	17	35	14	9	6	12500	-	0.042
3203A-2Z	17	40	17.5	12.7	7.8	9000	-	0.096
3303A-2Z	17	47	22.2	17.3	10.4	8000	-	0.18
3804A-2Z	20	32	10	4.9	3.9	13000	-	0.02
3904A-2Z	20	37	13	9.3	6.6	12000	-	0.046
3004A-2Z	20	42	16	14.2	9.6	11000	-	0.08
3204A-2Z	20	47	20.6	19	12.1	8000	-	0.16
3304A-2Z	20	52	22.2	19	12.3	8500	-	0.22
3805A-2Z	25	37	10	5.5	4.9	11500	-	0.025
3905A-2Z	25	42	13	9.6	7.5	11000	-	0.062
3005A-2Z	25	47	16	15.2	11	9500	-	0.1
3205A-2Z	25	52	20.6	20.6	13.9	7500	-	0.19
3305A-2Z	25	62	25.4	27.6	17.8	7500	-	0.367
3806A-2Z	30	42	10	5.7	5.6	10000	-	0.03
3906A-2Z	30	47	13	9.9	8.3	9500	-	0.095
3006A-2Z	30	55	19	20.3	15.5	8000	-	0.16
3206A-2Z	30	62	23.8	25.7	18.5	6300	-	0.31
3306A-2Z	30	72	30.2	37.2	25.9	6000	-	0.59
3807A-2Z	35	47	10	6.1	6.2	8500	-	0.035
3907A-2Z	35	55	15	12.9	11.3	8000	-	0.138
3007A-2Z	35	62	20	24.2	20.4	6500	-	0.24
3207A-2Z	35	72	27	30.4	23.5	5600	-	0.51
3307A-2Z	35	80	34.9	46.1	35.3	5300	-	0.82
3808A-2Z	40	52	10	6.4	6.9	7000	-	0.04
3908A-2Z	40	62	16	17.4	15.8	6500	-	0.158
3008A-2Z	40	68	21	24.5	20.8	6000	-	0.279
3208A-2Z	40	80	30.2	40.8	30.2	5300	-	0.64
3308A-2Z	40	90	36.5	54.9	40.1	4800	-	1.06
3809A-2Z	45	58	10	6.7	7.7	6300	-	0.055
3909A-2Z	45	68	16	17.9	17.2	6000	-	0.183
3009A-2Z	45	75	23	39.3	36.4	5600	-	0.364
3209A-2Z	45	85	30.2	42.8	34.5	4800	-	0.72
3309A-2Z	45	100	39.7	72.1	52	4300	-	1.24
3810A-2Z	50	65	12	7	8.4	6000	-	0.075
3910A-2Z	50	72	16	19.1	19.6	5800	-	0.189
3010A-2Z	50	80	23	42.3	41.9	5300	-	0.395
3210A-2Z	50	90	30.2	43.2	35.3	4500	-	0.78
3310A-2Z	50	110	44.4	84.9	62.6	4000	-	1.96
3811A-2Z	55	72	13	12.8	14.4	5500	-	0.01
3911A-2Z	55	80	19	20	21.7	5300	-	0.282
3011A-2Z	55	90	26	43.7	44.7	4800	-	0.581
3211A-2Z	55	100	33.3	53.9	47.2	4000	-	1.03
3311A-2Z	55	120	49.2	106.3	82	3600	-	2.4
3812A-2Z	60	78	14	13.6	16.2	5000	-	0.14
3912A-2Z	60	85	19	21	23.8	4800	-	0.303
3012A-2Z	60	95	26	47.2	53.4	4400	-	0.621
3212A-2Z	60	110	36.5	61.3	52.6	3800	-	1.4
3312A-2Z	60	130	54	121.4	95.1	3400	-	3.24
3813A-2Z	65	85	15	15.1	18.3	4700	-	0.182
3913A-2Z	65	90	19	21.4	24.8	4500	-	0.324
3013A-2Z	65	100	26	49.5	59.2	4000	-	0.661
3213A-2Z	65	120	38.1	73.4	66.6	3400	-	1.84
3313A-2Z	65	140	58.7	137.5	109.6	2800	-	3.9
3814A-2Z	70	90	15	18	21.9	4400	-	0.19
3914A-2Z	70	100	23	25.8	30	4000	-	0.516
3014A-2Z	70	110	30	54.2	58.9	3600	-	0.95
3214A-2Z	70	125	39.7	80.5	73.8	3200	-	1.98
3314A-2Z	70	150	63.5	154.5	125.1	2800	-	4.7
3815A-2Z	75	95	15	16	20.3	4200	-	0.224
3915A-2Z	75	105	23	26	31.3	3800	-	0.546
3015A-2Z	75	115	30	57.7	66.5	3400	-	1.003
3215A-2Z	75	130	41.3	87.9	81.4	3000	-	2.01
3315A-2Z	75	160	68.3	171.4	134.8	2600	-	6.3
3216A-2Z	80	140	44.4	103.7	97.5	2800	-	2.48
3316A-2Z	80	170	68.3	190.1	151.7	2400	-	7.21
3217A-2Z	85	150	49.2	111.8	106.4	2400	-	3.2
3317A-2Z	85	180	73	189.4	234.5	2200	-	8.3
3218A-2Z	90	160	52.4	111.8	106.4	2400	-	4.5
