Custom NISSAN Automotive Clutch Release Bearing Manufacturers, Factory

NISSAN

NISSAN Clutch Release Bearing is a clutch release bearing specially designed for Nissan vehicles. It is made of high-quality materials and has excellent wear resistance and corrosion resistance, ensuring the stability and durability of the clutch under high-frequency operations. . The bearings have precise dimensions and tolerances to ensure a perfect match with Nissan's clutch system, resulting in smooth shifting operations.

Send inquiry

NISSAN · OEM GRADE

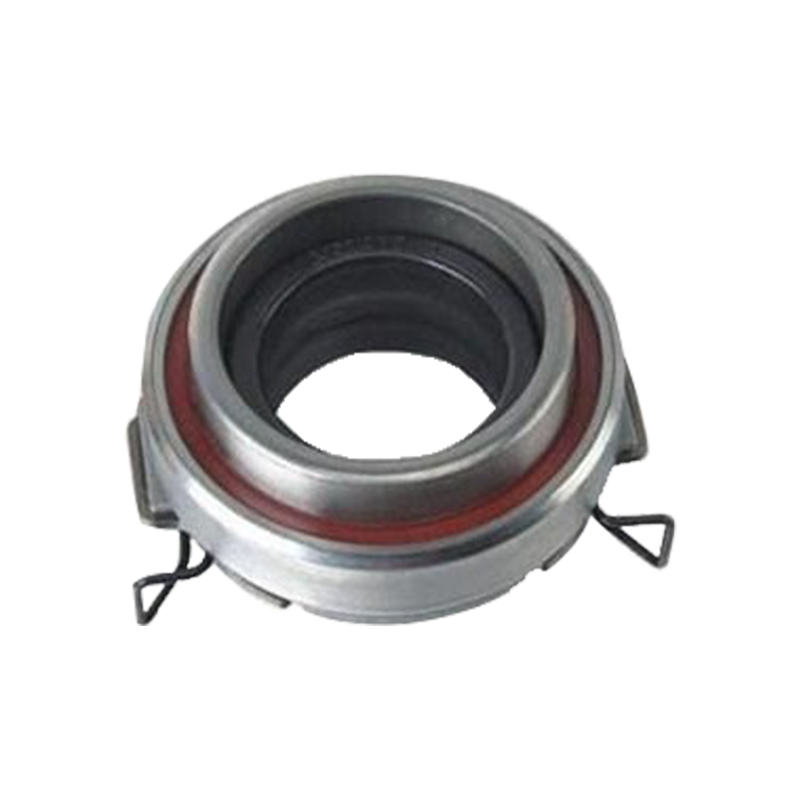

NISSAN Clutch Release Bearing

hydraulic actuation self-centering maintenance-free

Product overview
The NISSAN clutch release bearing is a precision-engineered component designed for hydraulic clutch actuation systems in Nissan passenger and light commercial vehicles. Manufactured from case-hardened chromium steel, the bearing features a self-centering spherical contact face that maintains constant alignment with the diaphragm spring fingers during pedal travel. The unit is pre-greased and sealed with a high-temperature nitrile rubber lip seal, ensuring protection against clutch dust and thermal degradation. Designed to operate within a temperature range of -40°C to +150°C, this bearing provides reliable disengagement performance for the entire service life of the clutch assembly.

Self-centering design

Spherical contact geometry automatically aligns with the pressure plate diaphragm spring, eliminating edge loading and uneven wear.

Low friction actuation

Precision-ground raceways and optimized ball complement reduce pedal effort and improve clutch engagement feel.

Dust & heat resistant

Integral sealing system with dual-lip NBR construction prevents contamination from clutch debris and withstands high thermal loads.

Extended service life

Pre-lubricated with high-temperature grease and tested to withstand over 100,000 engagement cycles in real-world conditions.

Product characteristics

Material	Case-hardened chromium steel (GCr15 / SAE 52100)
Contact face	Spherical, self-centering
Sealing type	Dual-lip nitrile rubber (NBR)
Lubrication	High-temperature lithium complex grease, -40°C to +150°C
Actuation type	Hydraulic (concentric slave or fork-operated)
Compatible models	Nissan Qashqai, X-Trail, Navara, Patrol, and selected Infiniti models

Application scenarios

Passenger carsQashqai, Juke, Pulsar — hydraulic clutch systems with dual-mass flywheel configurations.

Pickups & SUVsNavara, Pathfinder, Patrol — heavy-duty applications requiring high axial load capacity and thermal stability.

Commercial vansNV200, Primastar — frequent stop-start operation and urban delivery cycles.

Performance & aftermarketUpgraded releases for modified clutch kits and track-day vehicles.

Common technical inquiries

How to diagnose a failing clutch release bearing?

Listen for a chirping or grinding noise when the clutch pedal is partially depressed. Increased pedal vibration or difficulty engaging gears also indicates bearing wear. Measure axial play — if it exceeds 1.2 mm, replacement is recommended.

Can this bearing be used with dual-mass flywheel (DMF) systems?

Yes. The NISSAN release bearing is validated for DMF applications up to 0.8 mm axial oscillation. Ensure the clutch slave cylinder is in good condition to maintain correct hydraulic pressure.

What is the recommended torque for the fork pivot bolt?

Apply 25 Nm to the release fork pivot bolt. Use a thread-locking compound and ensure the guide tube is greased with Molykote G-n Plus prior to installation.

Is it necessary to replace the bearing with the clutch kit?

Yes, it is standard practice. Reusing a release bearing with a new pressure plate can cause uneven wear patterns and reduce service life by 40-60%. Always replace the bearing when servicing the clutch.

Installation

Apply force only to the outer ring during mounting. Use an appropriate press sleeve — never strike the bearing directly.

Cleanliness

Keep the guide tube and fork contacts clean. Contamination can lead to premature seal wear and bearing seizure.

Hydraulic system bleed

After installation, bleed the hydraulic system thoroughly. Air in the system can cause incomplete disengagement and excessive bearing load.

Storage

Store in original VCI packaging in a dry area with stable temperature. Avoid exposure to brake fluid or solvent vapors.

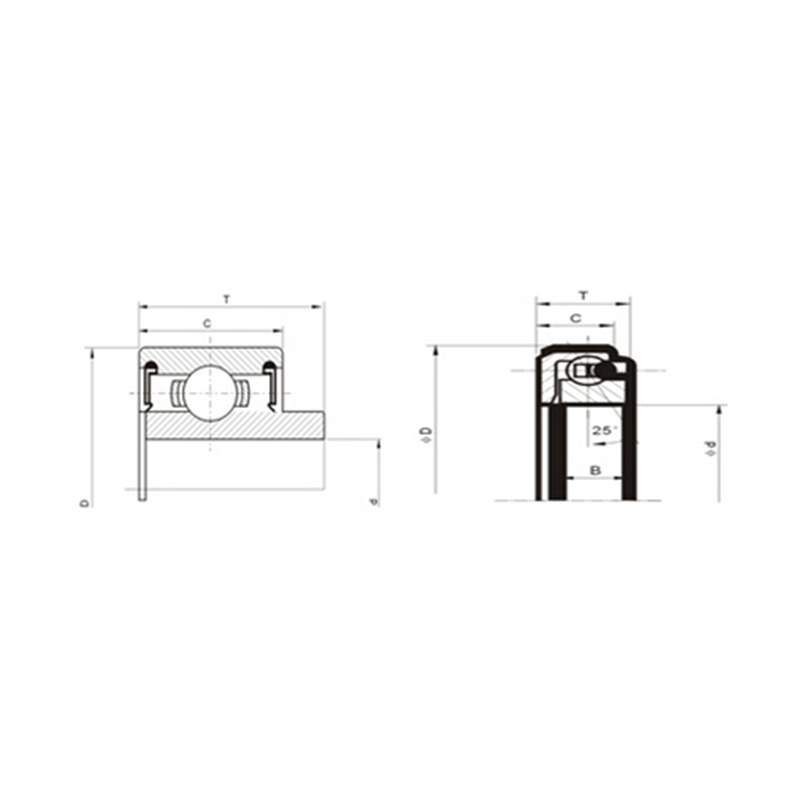

OE NO.	SKF NO.	Application	Boundary dimensions(mm)
d	D	h	W
30502-52A60	VKC3515	NISSAN	33.1	48	13	67.7
30502-81N00	VKC3560	NISSAN	33.1	62	13	67.7
30502-03E20	VKC3581	NISSAN	33.1	62	20	68.7
30502-21000	VKC3500	NISSAN	40	62	19	75
30502-52A00/60	VKC3555	NISSAN	33.2	48	24	67.6
30502-45P00	VKC356S	NISSAN	40	61	23	-
30502-03E24	VKC3610	NISSAN	33.1	62	24	68.7

OE NO.

SKF NO.

Application

Boundary dimensions(mm)

30502-52A60

VKC3515

NISSAN

33.1

67.7

30502-81N00

VKC3560

NISSAN

33.1

67.7

30502-03E20

VKC3581

NISSAN

33.1

68.7

30502-21000

VKC3500

NISSAN

30502-52A00/60

VKC3555

NISSAN

33.2

67.6

30502-45P00

VKC356S

NISSAN

30502-03E24

VKC3610

NISSAN

33.1

68.7

NISSAN

NISSAN Clutch Release Bearing
