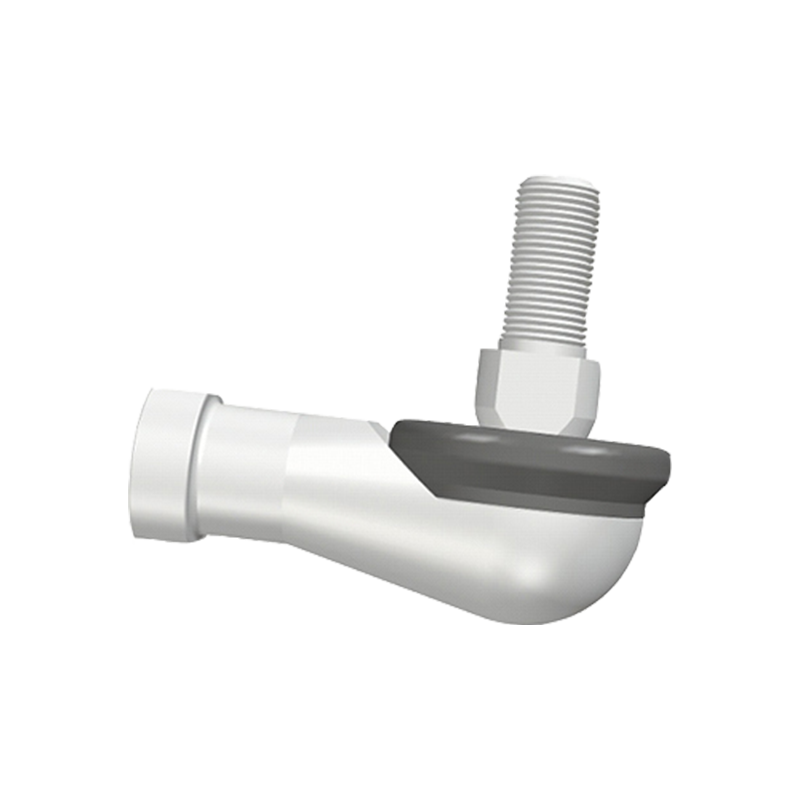

SQ...-RS series ball joint bearings are high-performance connecting elements widely used in mechanical equipment and automation systems. This ball joint design is designed to provide good rotational and oscillation performance and is able to withstand loads in multiple directions. SQ...-RS series bearings are made of high-strength materials and have excellent wear resistance and corrosion resistance, ensuring long-term stable operation in harsh environments. Its spherical design allows a greater range of motion and is suitable for use in a variety of sports equipment, industrial machinery and automotive fields. Through precision machining, the SQ...-RS series products ensure a high-precision fit and low friction characteristics, helping to improve the overall efficiency and reliability of the system.
Product parameters
| Designation | Dimensions（mm） | Static load ratings (KN) | Weight(Kg) | ||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| d1 | d2 | d3 | l | l1 | l2 | l3 | S1 | L | L1 | L2 | L3 | D1 | D2 | D3 | S2 | α° ≈ | |||
| SQ6-RS | M6 | 10 | 20 | 35.5 | 11 | 11 | 26 | 8 | 40 | 30.5 | 5 | 14 | 10 | 13 | 19 | 11 | 25 | 3.S | 0.039 |
| SQ8-RS | M8 | 12 | 24 | 42.5 | 12 | 14 | 31 | 10 | 48 | 36.5 | 5 | 17 | 12.5 | 16 | 23 | 14 | 25 | 6.6 | 0.068 |
| SQ10-RS | M10×1.25 | 14 | 30 | 50.5 | 15 | 17 | 37 | 11 | 57 | 43.5 | 6.5 | 21 | 15 | 19 | 27 | 17 | 25 | 10 | 0.112 |
| SQ12-RS | M12×1.25 | 17 | 32 | 57.5 | 17 | 19 | 42 | 15 | 66 | 50.5 | 6.5 | 25 | 17.5 | 22 | 31 | 19 | 25 | 16 | 0.164 |
| SQ14-RS | M14×1.5 | 19 | 38 | 73.5 | 22 | 21.5 | 56 | 17 | 75 | 57.5 | 8 | 26 | 20 | 25 | 35 | 22 | 25 | 19 | 0.254 |
| SQ16-RS | M16×1.5 | 22 | 44 | 79.5 | 23 | 23.5 | 60 | 19 | 84 | 64.5 | 8 | 32 | 22 | 27 | 39 | 22 | 20 | 26 | 0.336 |
| SQ18-RS | M18×1.5 | 23 | 45 | 90 | 25 | 26.5 | 68 | 20 | 93 | 71 | 10 | 34 | 25 | 31 | 44 | 27 | 20 | 33 | 0.464 |
| SQ20-RS | M20×1.5 | 27 | 50 | 90 | 25 | 27 | 68 | 24 | 99 | 77 | 10 | 35 | 27.5 | 34 | 44 | 30 | 20 | 45 | 0.538 |
| SQ22-RS | M22×1.5 | 27 | 52 | 95 | 26 | 28 | 70 | 24 | 109 | 84 | 12 | 41 | 30 | 37 | 50 | 32 | 16 | 48 | 0.713 |
