23100 Series

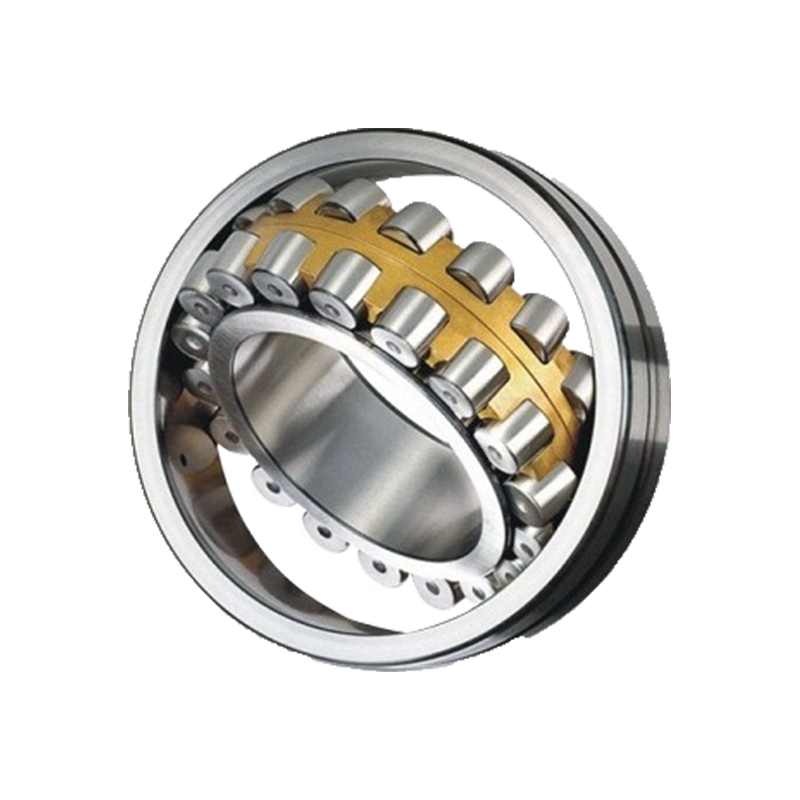

23100 Series Spherical Roller Bearing - Self-Aligning Performance for High-Load Applications

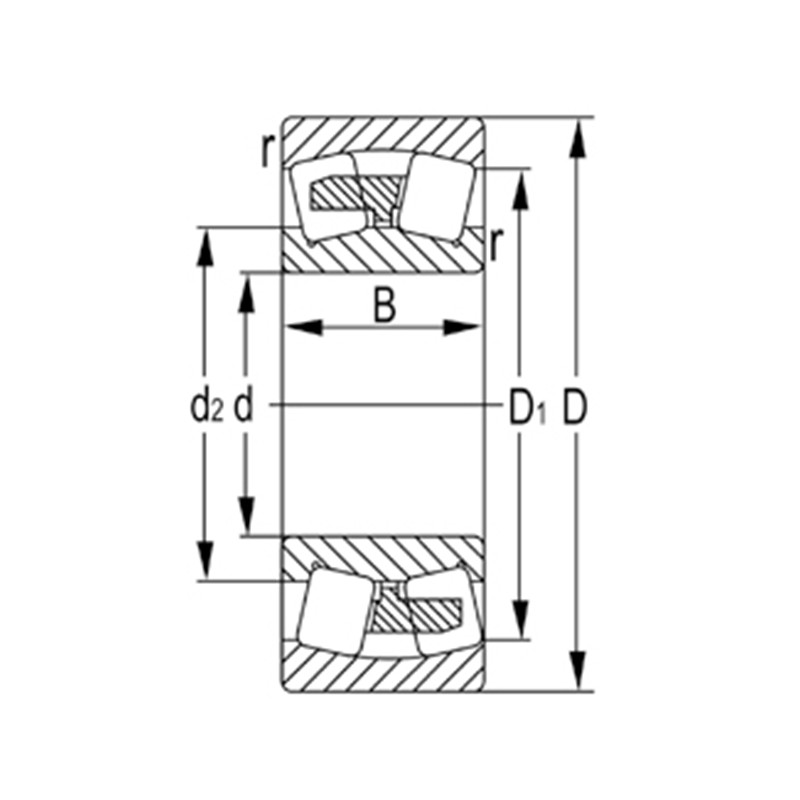

The 23100 Series Spherical Roller Bearings are engineered to accommodate angular misalignment and heavy loads, making them a crucial component in industrial machinery. This series is designed with two rows of symmetrical rollers and a shared spherical raceway on the outer ring, allowing the inner ring to tilt relative to the outer ring. This self-aligning capability is essential for applications where shaft deflection or mounting errors are common. They are widely used in heavy-duty environments to ensure operational stability and extend equipment lifespan.

Product Features

• Self-Aligning Capability: The spherical design allows for angular misalignment, reducing stress and friction caused by shaft deflection or installation errors. This feature is critical for **high-vibration applications** and ensures consistent performance.
• High Load Capacity: Featuring a large number of rollers and an optimized internal geometry, these bearings are designed to handle extremely heavy radial and axial loads. They are a reliable solution for **heavy-duty industrial equipment**.
• Enhanced Durability: Constructed from high-quality steel, the 23100 series offers superior fatigue life and resistance to wear, making it a robust choice for **continuous operation machinery**. The cage design is optimized for roller guidance and low friction.

Product Description

The 23100 Series Spherical Roller Bearing is meticulously engineered to provide reliable performance under the most demanding conditions. Its design principle focuses on accommodating dynamic loads and angular misalignment without compromising its load-carrying capacity. This makes it an ideal choice for **paper mills**, **steel rolling mills**, and **mining equipment**, where machinery is subject to significant stress and potential shaft deflection. Manufactured to stringent ISO and ABMA standards, each bearing undergoes rigorous quality control to ensure dimensional accuracy and consistent performance. This series serves as a direct and reliable replacement for many **OEM spherical roller bearing** applications and is a proven component in **power transmission systems**.

Application Areas

The 23100 series is a cornerstone component in various heavy industries due to its resilience and reliability. Key applications include:

• Conveyors and Crushers: Used in mining and aggregate processing to manage heavy, fluctuating loads.
• Paper and Pulp Machinery: Essential for supporting rolls and drying cylinders, where high temperatures and axial loads are present.
• Gearboxes and Wind Turbines: Provides critical support for shafts, accommodating potential misalignment and high torque.
• Rolling Mills: Manages extreme radial forces in steel and metal production.
• Industrial Fans and Blowers: Ensures smooth operation under high speed and heavy-duty conditions.

FAQ

1. How do I determine the correct 23100 series bearing for my application?

Selecting the right bearing depends on specific operational factors, including the required load capacity (dynamic and static), rotational speed, and environmental conditions such as temperature and contamination. While the 23100 series offers high performance, a proper **bearing load calculation** is essential to prevent premature failure. Our technical engineers can perform a free analysis based on your application’s specific parameters to ensure optimal bearing selection and longevity.

2. What is the difference between a spherical roller bearing and a spherical plain bearing for alignment?

A spherical roller bearing, such as the 23100 series, is designed to accommodate both misalignment and rotational movement while carrying high radial and axial loads. In contrast, a spherical plain bearing is primarily for oscillating or low-speed rotational movements and is not suitable for high-speed applications. If your machine requires a rotating shaft to handle misalignment, a spherical roller bearing is the appropriate choice. If you are uncertain about the best bearing type for your needs, please contact our support team for expert guidance on **bearing replacement** or new design solutions.
